RFLoXa Fork Overview and Differences of Pro vs Max



---

1. Overview

This article provides a full comparison of RFLoXa front fork models, including the Hawk 32, Hawk 31 Pro, Hawk 31 Max, Hawk 33 Max, and Hawk 35 Max.
It explains the differences in performance, included hardware, spring rate options, and triple-clamp design between the Pro and Max series to help determine which setup best fits a rider’s needs and bike platform.

---

2. Key Details or Product Summary

• Product Name: RFLoXa Hawk 32 | Hawk 31 Pro | Hawk 31 Max | Hawk 33 Max | Hawk 35 Max



• Category: Front Suspension / Fork Assembly



• Purpose: Upgrade the front suspension system of electric dirt bikes for improved damping control, traction, and ride comfort—engineered to handle everything from light-trail use to full-size moto applications.



• Series Overview:

  • Hawk 32 → Entry-level upgrade focused on balanced handling and lightweight performance.

  • Hawk 31 Pro → Mid-tier fork with refined internals and extended (228 mm) travel.

  • Hawk 31 Max → Heavy-duty MAX hardware version with widened triple-clamp kit for higher loads and big-bike geometry.

  • Hawk 33 Max → Full-size moto-ready variant for Talaria MX5 and similar platforms.

  • Hawk 35 Max → Flagship fork built for E-Ride Pro 3.0/SR and race-level e-motos.



• Included Hardware: Fork assembly, axle kit, and for MAX models a complete widened triple-clamp kit (upper + lower clamps, steering stem, hardware).



• Spring Rate Options: 45 lb / 55 lb / 60 lb / 45-60 lb progressive (availability varies by model and rider weight).



• Clamp Widths: Standard (~146 mm) on Pro & 32 series | Widened MAX (~162 mm) on Max series for increased stability and 21″ wheel clearance.



• Compatible Models (see fitment on RFLoXa.com for details):
  SurRon Light Bee / LBS / L1E | Segway X-260 / X-160 | Talaria MX3 / MX4 / MX5 / XXX | E-Ride Pro S / SS | Rerode R1 / R1+ | Ventus V1 / V1+ | Arctic Leopard XE Pro S | Rawrr Mantis | 79 Bike Falcon M / Falcon Pro | RFN Apollo



• Brand / Manufacturer: RFLoXa Suspension Technology



---

3. In-Depth Explanation or Comparison

3.1 Core Concept / Product Description

Hawk 32 – Entry-Level Upgrade

• Overview: The Hawk 32 is the most accessible RFLoXa fork, designed for riders wanting a noticeable suspension improvement over stock setups without the added weight or stiffness of the MAX chassis.

• Travel: ≈ 203 mm (some variants up to 228 mm)

• Stanchions: 37 mm diameter AL7075-T6 tubes

• Spring Rates: 45 lb / 60 lb / 45–60 lb progressive

• Triple Clamp: Standard CNC 6061-T6 (≈ 146 mm center)

• Included Hardware: Fork assembly + axle kit

• Ideal Use: Trail and enduro riding where a lighter, more compliant front end is preferred.

• Ride Feel: Smooth initial stroke and balanced damping with excellent traction and comfort for recreational or intermediate riders.

---

Hawk 31 Pro – Mid-Tier Performance

• Overview: The Hawk 31 Pro adds refined internals, extended travel, and more precise damping for riders pushing harder on track or trail.

• Travel: 203 – 228 mm adjustable range

• Stanchions: 37 mm AL7075-T6 tubes with enhanced bushing support

• Spring Rates: 45 lb (for ≤ 100 kg riders), 55 lb (100 – 130 kg riders), 45–60 lb progressive option

• Triple Clamp: CNC 6061-T6 standard width (≈ 146 mm center)

• Included Hardware: Fork assembly + CNC clamps + axle hardware

• Upgrades Over Hawk 32: Longer stroke travel, refined hydraulic cartridge, and tunable high/low-speed compression and rebound circuits.

• Ideal Use: Aggressive trail or light moto riding where riders want more stability and control without the extra bulk of MAX hardware.

---

Hawk 31 Max – Heavy-Duty MAX Spec

• Overview: Built for heavier riders and high-power e-motos, the Hawk 31 Max adds the full MAX chassis package for stiffness and strength.

• Travel: 203 – 228 mm

• Stanchions: 37 mm diameter

• Spring Rates: 45 lb / 55 lb / 45–60 lb progressive

• Triple Clamp: Widened MAX drop-crown design ≈ 162 mm center (for 19″–21″ wheel fitment)

• Included Hardware: Complete MAX kit — upper & lower triple clamps, steering stem, front axle, spacers & mounting hardware.

• Upgrades Over Pro: Increased clamp width, stiffer crown assembly, larger wheel clearance, and enhanced damping for higher loads.

• Ideal Use: Race and jump-intensive riding on Rerode R1+, Ventus V1+, Arctic Leopard XE Pro S and similar heavy frames.

• Ride Feel: More planted and predictable under hard braking or big hits with improved front-end feedback.

---

Hawk 33 Max – Full-Size Moto Application

• Overview: Designed specifically for larger frames like the Talaria MX5, the Hawk 33 Max brings MAX-level hardware to full-size e-moto geometry.

• Travel: 203 – 228 mm

• Stanchions: 37 mm

• Triple Clamp: Widened MAX design with reinforced steering stem and larger axle interface.

• Spring Rates: Heavy-duty (optimized for bikes ≥ 100 kg wet weight).

• Included Hardware: Complete MAX clamp kit + axle + hardware.

• Ideal Use: High-speed track and moto-style riding on larger chassis platforms where front-end rigidity is essential.

---

Hawk 35 Max – Flagship Race Fork

• Overview: The top of the RFLoXa lineup—built for the E-Ride Pro 3.0 / SR and race-spec full-size e-motos.

• Travel: 203 – 228 mm

• Stanchions: Largest diameter in the series (> 37 mm spec noted for stiffness).

• Spring Rates: Heaviest progressive coil options for high-load riders and frames.

• Triple Clamp: Widened MAX assembly with reinforced hardware and premium finish options (black or gold).

• Included Hardware: Full MAX kit (upper/lower clamps, stem, axle hardware).

• Ideal Use: Professional riders seeking ultimate front-end rigidity, precision, and big-hit control in competition environments.

---

3.2 Feature Breakdown / Components Included



Pro vs Max Quick Reference

Feature	Pro Series	Max Series
Travel Range	203 – 228 mm	203 – 228 mm (standard on most MAX models)
Clamp Width	≈ 146 mm standard	≈ 162 mm widened drop-crown
Hardware Included	Fork assembly + standard CNC clamps + axle	Fork assembly + MAX triple-clamp kit + axle + stem hardware
Spring Options	45 / 55 / progressive	Heavier progressive springs for high-power bikes
Weight & Feel	Lighter, more responsive ride feel	Stiffer, more planted front end
Target Riders	Trail / enduro / mid-power bikes	Aggressive / race / full-size e-motos



3.2 Feature Breakdown / Components Included

Feature / Spec	Hawk 32	Hawk 31 Pro	Hawk 31 Max	Hawk 33 Max	Hawk 35 Max
Fitment & Bike Compatibility	Fits SurRon Light Bee (LBX / LBS / L1E), Talaria MX3 / MX4 / XXX, Segway X-160 / X-260, Ventus V1, Rawrr Mantis, 79 Bike Falcon M / PRO	Fits SurRon LBX / LBS / L1E, Talaria MX3 / MX4 / XXX / MX5, Segway X-160 / X-260, E-Ride Pro S / SS 1.0 – 3.0, Ventus V1 / V1+, Rerode R1 / R1+, Arctic Leopard XE Pro S	Fits SurRon LBX / LBS / L1E, Talaria MX3 / MX4 / MX5 / XXX, Segway X-160 / X-260, E-Ride Pro S / SS 1.0 – 3.0, Ventus V1 / V1+, Rerode R1+, Arctic Leopard XE Pro S / EXE 880	Exclusive Fitment: Talaria MX5 only	Fits E-Ride Pro 3.0 / SR and full-size moto frames
Travel Range	≈ 203 mm	203 – 228 mm	203 – 228 mm	203 – 228 mm	203 – 228 mm
Stanchion Diameter	37 mm	37 mm	37 mm	37 mm	Largest in series (> 37 mm)
Spring Options / Rider Weight	45 lb (≤ 100 kg) · 60 lb (≥ 100 kg) · 45-60 lb progressive	45 lb (≤ 100 kg) · 55 lb (100 – 130 kg) · 45-60 lb progressive	45 lb (≤ 100 kg) · 55 lb (100 – 130 kg) · 45-60 lb progressive	Heavy-duty progressive options for ≥ 100 kg riders	Heaviest progressive coils for race and high-load frames
Adjustments	Rebound / Compression / Preload	Rebound / High- & Low-Speed Compression / Preload	Rebound / High- & Low-Speed Compression / Preload	Rebound / Compression / Preload	Rebound / High- & Low-Speed Compression / Preload
Triple Clamp Type	Standard CNC 6061-T6 (~146 mm center)	Standard CNC 6061-T6 (~146 mm center)	Widened MAX Clamp (~162 mm center) with drop-crown geometry	MAX Clamp kit with reinforced steering stem	MAX Clamp kit with largest reinforced hardware
Included Hardware	Fork assembly + axle kit	Fork assembly + CNC clamps + axle hardware	Fork assembly + MAX triple-clamp kit (upper/lower clamps, stem, axle, hardware)	Fork assembly + MAX clamp kit + axle hardware	Fork assembly + MAX clamp kit + reinforced axle and stem hardware
Compression System	Single compression adjuster	Independent high/low-speed circuits	Independent high/low-speed circuits	Independent high/low-speed circuits	Independent high/low-speed circuits
Damping Structure	Oil-gas separation cartridge with rubber bladder for smooth absorption	Oil-gas cartridge with rubber bladder for heat resistance and consistency	Oil-gas cartridge with increased fluid capacity for long motos and big hits	High-flow oil-gas cartridge for large-bike stability	Race-tuned oil-gas system for competition control
Finish Colors / Appearance	Grey (anodized matte)	Silver only	Black / Gold	Gold / Black	Black / Gold
Best Use Case	Trail / Enduro upgrade for light e-motos	Mid-performance trail and light moto use	Race / big-bike e-moto platforms	Full-size moto setup (Talaria MX5)	Flagship race and competition applications

Summary

The RFLoXa Hawk series provides a full range of fork options designed to match every type of electric dirt bike build — from lightweight trail setups to full-size race machines.



• Hawk 32 – Entry-level upgrade offering improved damping and plush compliance for riders who want a step up from stock suspension without added stiffness. Ideal for SurRon Light Bee, Talaria MX3/MX4, and other smaller e-motos.



• Hawk 31 Pro – The balanced performer. Provides adjustable high-/low-speed compression, extended travel, and precision damping for aggressive trail and track use. Available only in silver.



• Hawk 31 Max – The heavy-duty version of the Pro. Equipped with a widened MAX triple-clamp kit, stiffer chassis, and progressive spring rates for heavier riders or high-power bikes such as the Rerode R1+, Ventus V1+, and Arctic Leopard XE Pro S. Available in black or gold.



• Hawk 33 Max – Purpose-built for the Talaria MX5. Uses the same MAX hardware with geometry and clearance tailored to the MX5 frame and wheel dimensions. Available only in gold.



• Hawk 35 Max – The flagship race-level fork developed for E-Ride Pro 3.0/SR and other full-size e-moto platforms. Delivers the highest stiffness, damping control, and tuning range in the RFLoXa lineup.



Pro vs Max Key Takeaway:

• Pro models focus on lightweight precision, extended travel, and adjustability suited for mid-power builds.

• Max models include widened clamps, reinforced hardware, and heavier spring options for superior stability under higher loads.

When selecting a fork, riders should consider bike weight, terrain type, and riding intensity. Each Hawk model delivers the same RFLoXa core damping technology—what changes is the level of strength, travel, and tuning flexibility to match your setup.

---

3.4 Photos & Visual References





 Summary

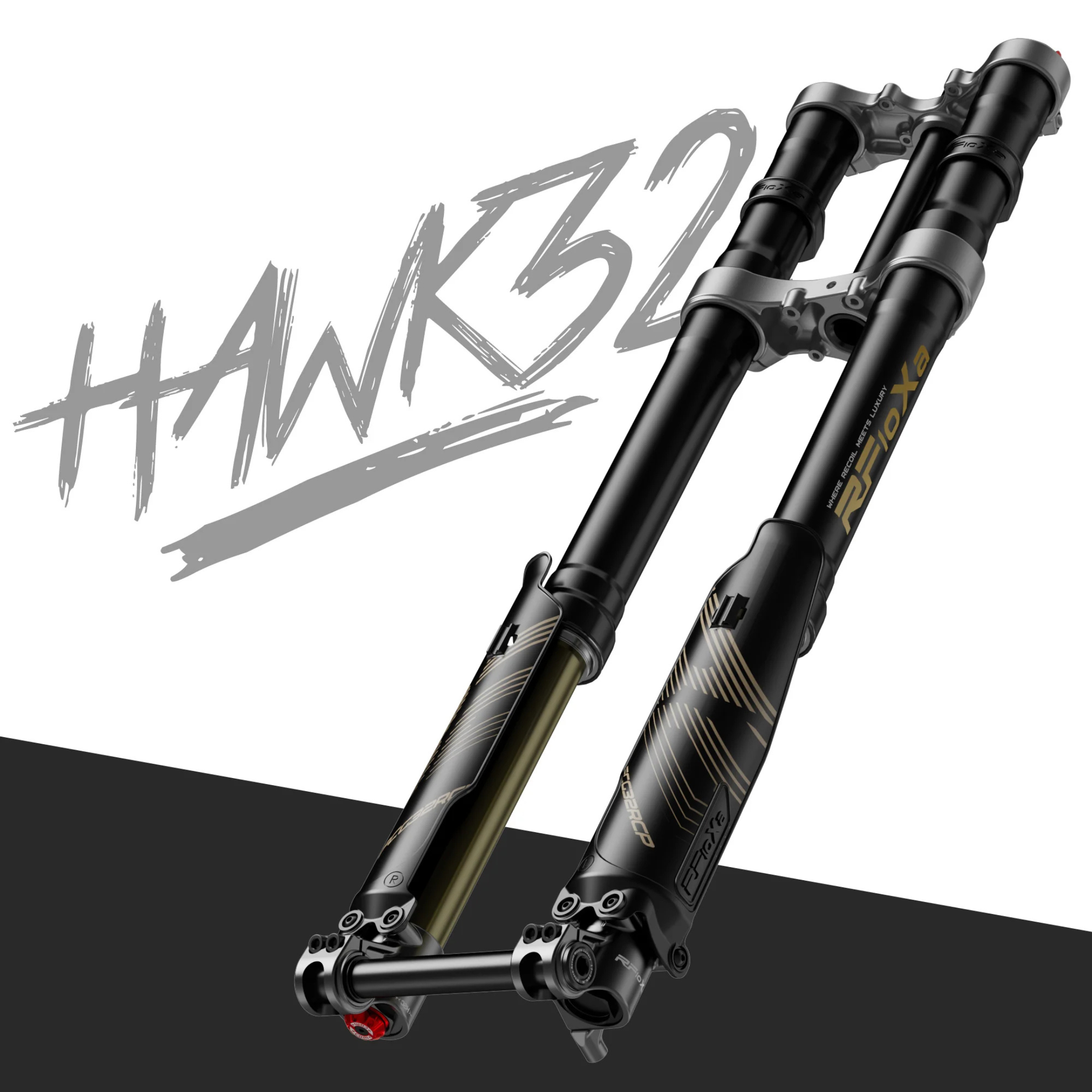

• Hawk 32 (Grey) – Entry-level fork for trail and enduro riding. Light, smooth, and a big upgrade from stock suspension.

• Hawk 31 Pro (Silver) – Mid-level fork with more travel and full adjustability for aggressive riders.

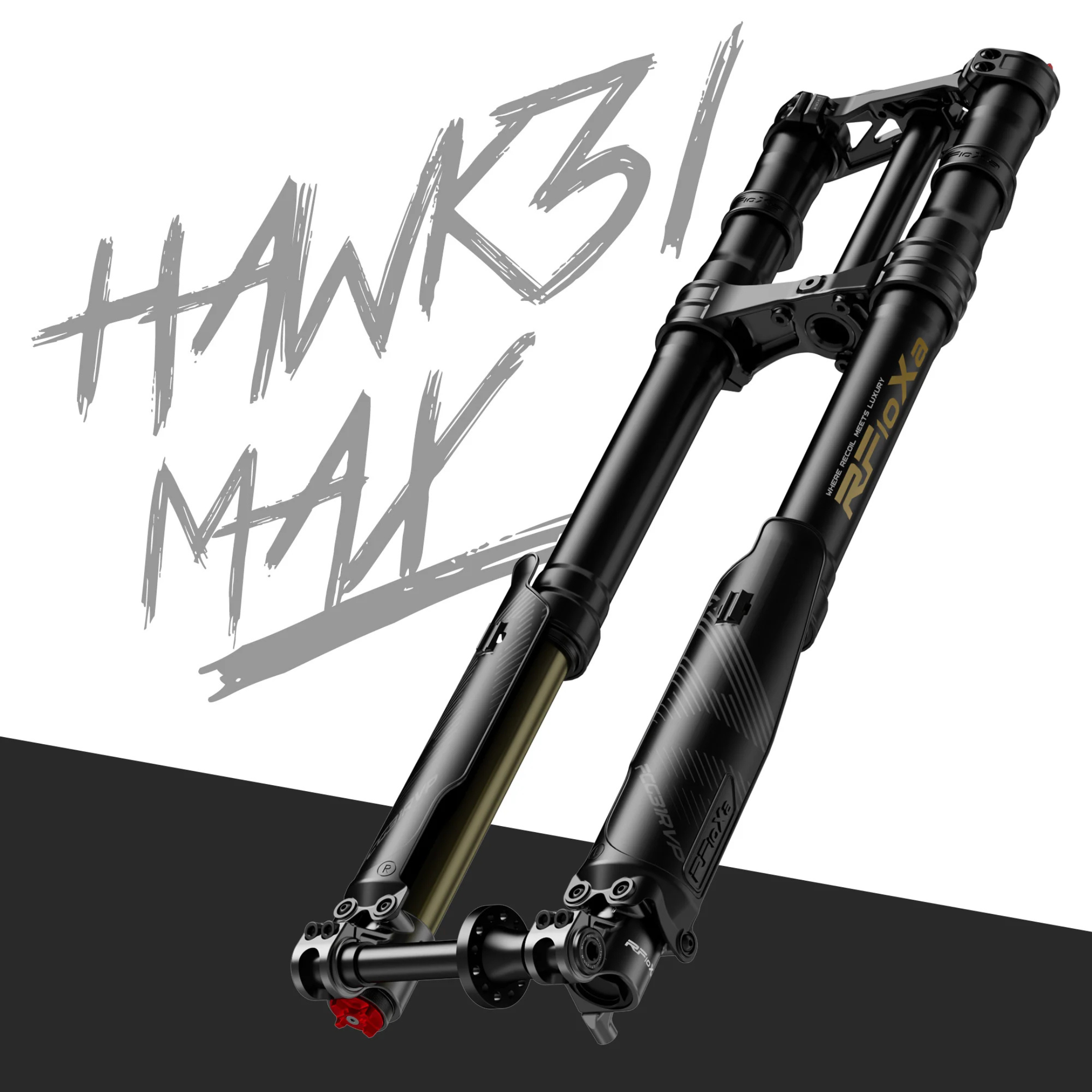

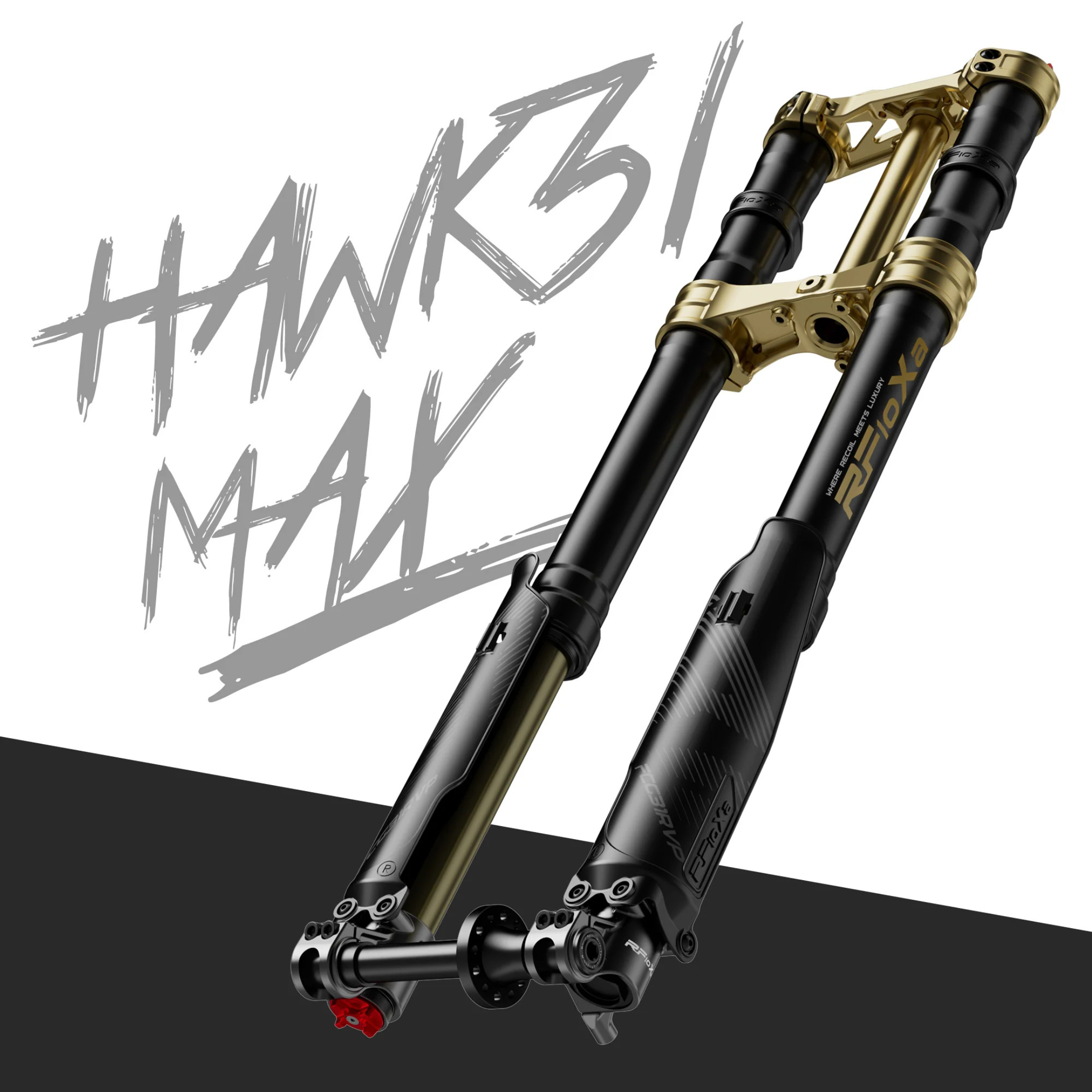

• Hawk 31 Max (Black / Gold) – Heavy-duty version with widened clamps and stiffer feel for high-power bikes.

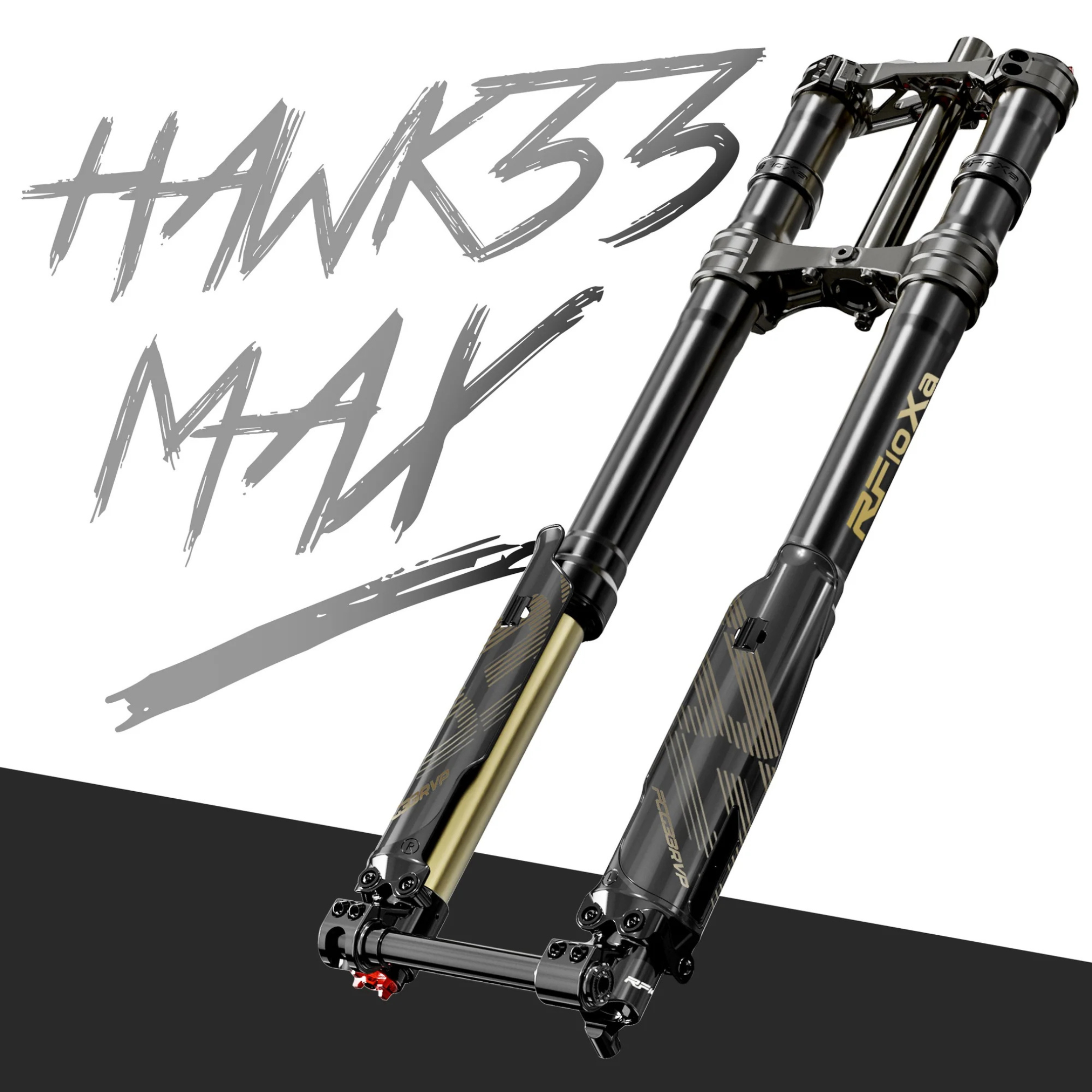

• Hawk 33 Max (Black) – Designed specifically for the Talaria MX5.

• Hawk 35 Max (Black) – Top-of-the-line race fork built for the E-Ride Pro 3.0 / SR and full-size e-motos.

---

4. Technical Data

Technical Analysis

All RFLoXa Hawk forks use the same high-tensile 55CrSi spring steel, with different coil rates and thicknesses depending on rider weight and model type.

• 450 lb spring – Softer rate offering a smoother initial stroke for lighter riders or trail-style riding (≈ 1 mm compression per 100 N of load).

• 550 lb spring – About 22 % stiffer, reducing sag and improving bottom-out resistance for heavier riders (100 kg +) or aggressive jump/track use.

---

Damping & Adjustment

• Pro Forks (Hawk 31 Pro / 32): Feature independent rebound, and combined high-/low-speed compression adjusters for precise fine-tuning on lighter or mid-power bikes.

• Max Forks (Hawk 31 Max / 33 Max / 35 Max): Use dual-circuit damping systems with increased oil volume and higher-pressure gas management for better control during sustained hard riding.

• Compression System: All Hawk forks use RFLoXa’s oil-gas separation bladder design, which keeps damping consistent under heat and prevents cavitation during long motos.

---

Structural Differences

Feature	Pro Models	Max Models
Triple Clamp Width	≈ 146 mm standard CNC 6061-T6	≈ 162 mm MAX drop-crown geometry
Oil Capacity	Standard volume	+18 % increased oil capacity for better thermal control
Chassis Rigidity	Mid stiffness	+25 % stiffer steering assembly for high load stability
Target Use	Trail / Enduro / Light Moto	Big-Bike / MX / Race applications

---

Performance Testing Notes

RFLoXa’s internal dyno data shows that Max forks maintain ~10–15 % more damping consistency under sustained heat loads compared to Pro models, largely due to their expanded oil capacity and improved bladder-reservoir design.
The result is smoother control over braking bumps, less fade on long motos, and greater front-end stability in high-speed or high-impact conditions.



---

5. Insights, Notes & Recommendations

Recommended Use

• Hawk 32 (Grey) — Designed for trail and enduro riders looking for a plush and lightweight setup. Best for riders under 100 kg seeking comfort and control on smaller e-motos.

• Hawk 31 Pro (Silver) — Ideal for intermediate to advanced riders who want precise damping and more travel. Delivers a balanced feel for aggressive trail or track riding.

• Hawk 31 Max (Black / Gold) — Built for heavier riders or high-power bikes that demand a stiffer front end. Handles jumps, race tracks, and sustained impacts with ease.

• Hawk 33 Max (Black) — Tuned specifically for the Talaria MX5. Uses MAX geometry and heavy-duty springs for full-size chassis stability.

• Hawk 35 Max (Black) — The flagship fork for full-size e-moto and race applications such as E-Ride Pro 3.0 / SR. Maximum stiffness, travel, and damping control for professional-level performance.

---

Pairing Recommendations

When paired with RFLoXa’s RAB50RC or RAB53RV rear shocks, the Hawk-series forks deliver a perfectly balanced front-to-rear setup across all major e-moto platforms — including SurRon Light Bee, Talaria MX series, Ventus V1+, Rerode R1+, and Arctic Leopard XE Pro S.

Both fork and shock systems are internally valved to complement each other, maintaining:

• Consistent rebound timing

• Balanced weight transfer

• Predictable traction during braking and acceleration

---

Key Takeaway

The Pro forks prioritize agility, adjustability, and rider comfort — ideal for trail and enduro use.
The Max forks deliver increased rigidity, oil capacity, and clamp strength for race and big-bike performance.

All RFLoXa suspension components are tested and validated across real-world e-moto platforms to ensure reliable performance in both recreational and competitive riding conditions.

---
